Insulating hot sticks allow lineworkers to safely operate switches, measure voltages, apply temporary grounds, and replace fuses on energized high-voltage lines. Over time, exposure to moisture, dirt, UV radiation, surface tracking, or structural stress can breach the fiberglass shell, posing severe electrical shock hazards.
Burlington Safety Laboratory provides comprehensive, ASTM-compliant dielectric testing and inspection for all fiberglass tools across our state-of-the-art testing facilities in New Jersey and California. With our standard 2-week turnaround time (and expedited services available), we ensure your live line tools remain electrically safe and fully compliant.
Why Choose Burlington Safety Lab for Hotstick Testing?
- NAIL for PET Accredited: Certified independent laboratory testing since 1971.
- Full ASTM / OSHA Compliance: Tested strictly to ASTM F711 and IEEE 978 industry standards.
- Seamless Repair & Replacement: Complete inventory of new tools and replacement components ready to handle damaged gear.
- Complete Traceability: Detailed test documentation, ink date stamping, and serialized record-keeping provided with every order.
Hotstick Compliance & Testing Specifications
In accordance with OSHA 1910.269(j) and IEEE 978, fiberglass live line tools must undergo dielectric laboratory testing every 2 years (or immediately if subjected to severe mechanical stress, contamination, or electrical tracking).
Spec Feature | Standard Specification Details |
|---|---|
Applicable Standards | ASTM F711 (Fiberglass Tools) & IEEE 978 (Guide for In-Service Maintenance/Testing) |

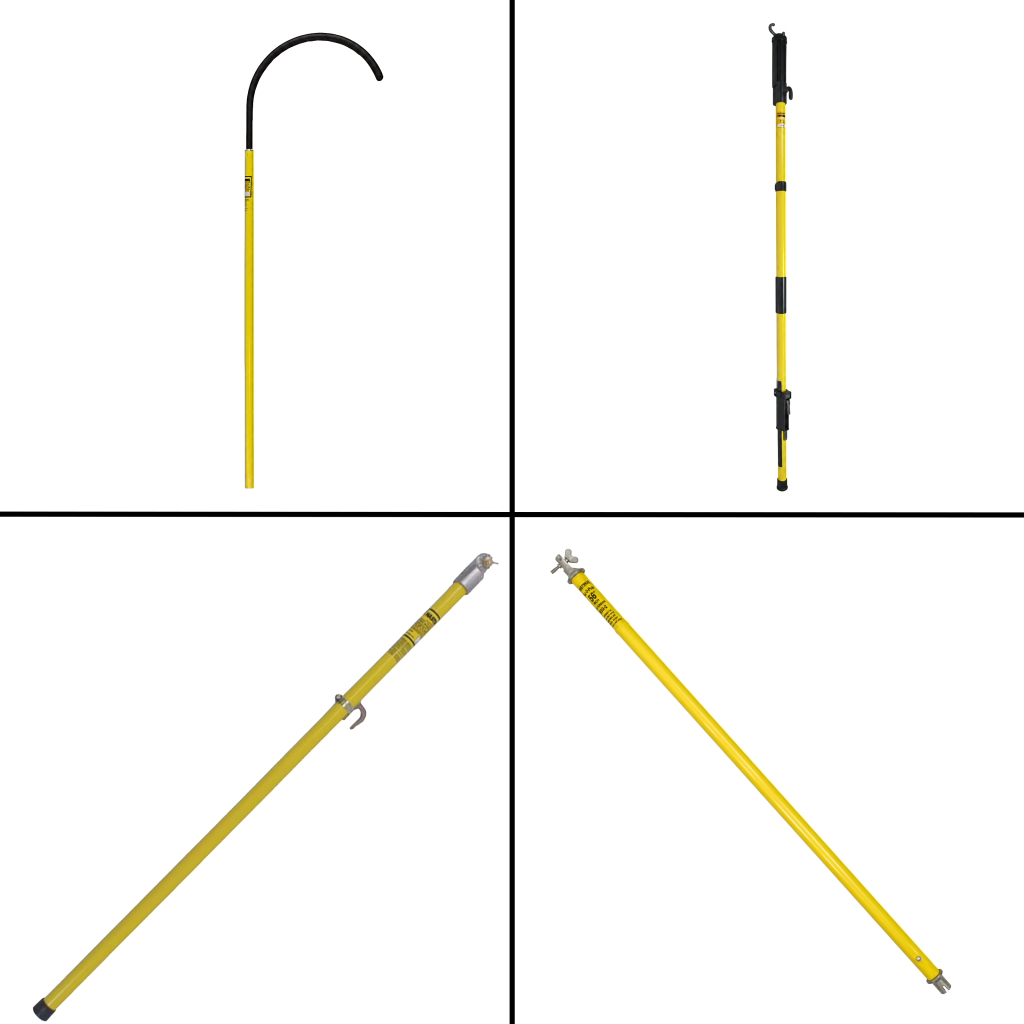

Tool Types Tested | Telescopic sticks, shotgun/grip-all sticks, switch sticks, measuring poles, and hot line tools |
Required Test Frequency | Every 2 years (In-Service) / Annual visual inspection & daily pre-use check |
Accreditation | NAIL for PET (North American Independent Laboratories for Protective Equipment Testing) |
Turnaround Time | Standard 2-Week Turnaround (Expedited Services Available) |

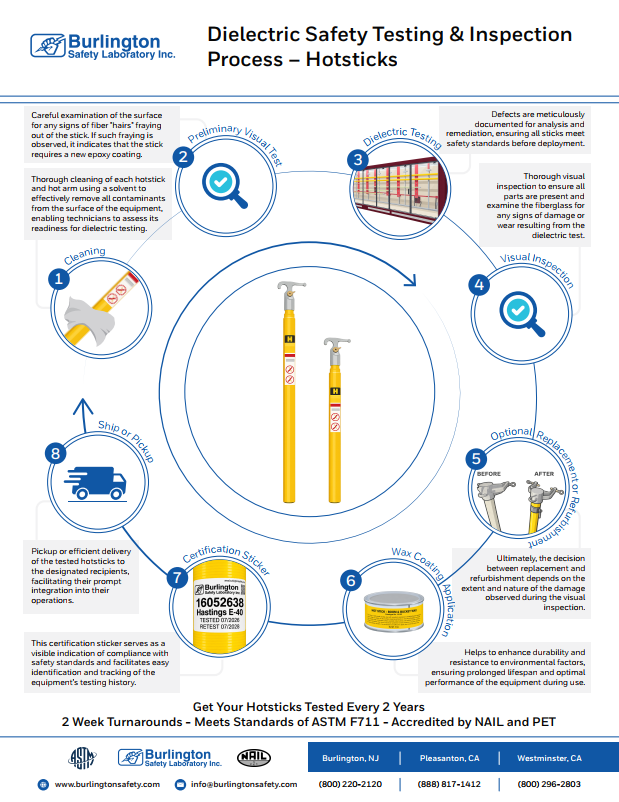

Our Step-by-Step Dielectric Testing Process for Hotsticks
Every fiberglass hot stick submitted to Burlington Safety Laboratory undergoes a multi-stage electrical and physical evaluation:
Step 1: Preparatory Cleaning & Decontamination
Hot sticks are thoroughly cleaned using specialized, solvent-free industrial cleaners approved for fiberglass safety tools. This process removes road film, grease, silicone residues, metal particles, and environmental contaminants that create conductive tracking paths on the tool’s surface.
Step 2: Surface Drying
Following cleaning, tools undergo controlled warm-air drying to remove all surface moisture prior to high-voltage dielectric evaluation.
Step 3: High-Voltage Wet/Dry Dielectric Testing
Hot sticks are mounted on specialized test benches and subjected to high-voltage AC dielectric testing in accordance with ASTM F711 standards (typically 100kV per foot for wet/dry dielectric evaluation). Precision sensors monitor current leakage along the length of the tool. Any stick displaying excessive leakage current or internal dielectric breakdown is flagged immediately.
Step 4: Re-Drying Process
After completing electrical tests, tools undergo a final drying cycle to prepare the fiberglass surface for physical and mechanical inspection.
Step 5: Visual Inspection & Structural Integrity Check
Skilled technicians inspect the tool from end-to-end under bright illumination. Technicians verify mechanical operation (latches, springs, head mechanisms) and check for:
- Fiber blooming, surface cracking, deep gouges, or fractures
- UV degradation, delamination, or loss of glossy protective finish
- Damaged, bent, or loose metal operating heads, ferrules, and locking pins
Step 6: Serialized Stamping & Documentation
Hot sticks passing dielectric and visual testing are stamped in durable ink or affixed with weather-resistant labels detailing the unique serial number, test voltage, and test completion date for complete audit traceability.
Step 7: Protective Sleeving & Packaging
Certified hot sticks are wrapped or enclosed in protective plastic sleeving to guard against surface scratches, moisture, and contamination during transport.
Step 8: Boxing & Labeling
Tools are packaged in heavy-duty shipping containers or crates, sealed with Burlington Safety tape, and tagged with detailed tracking information.
Step 9: Shipping or Pickup
Finished orders are shipped via UPS/freight or made available for customer pickup at one of our regional facilities (Burlington, NJ; Pleasanton, CA; Westminster, CA).
Hotstick Field Care & Inspection (In the Field Guidelines)
Proper daily maintenance protects the fiberglass finish and maintains electrical insulation properties between required 2-year laboratory tests:
ALWAYS:
NEVER:
Immediate Replacement & Repair for Failed Hotsticks
If a hot stick fails dielectric testing or shows physical damage, it cannot return to service without repair or replacement.
Burlington Safety Laboratory offers full support for failed live line tools:
- Replacement Parts & Heads: Replacement hooks, operating heads, end caps, and latches.
- New Tool Inventory: Immediate shipment of new ASTM F711 certified hot sticks (shotgun, telescopic, switch, and measuring sticks) from top manufacturers to keep your operations running without delay.
Ready to Recertify Your Hotsticks?
Keep your utility workers safe and ensure full compliance with OSHA and ASTM/IEEE standards.
